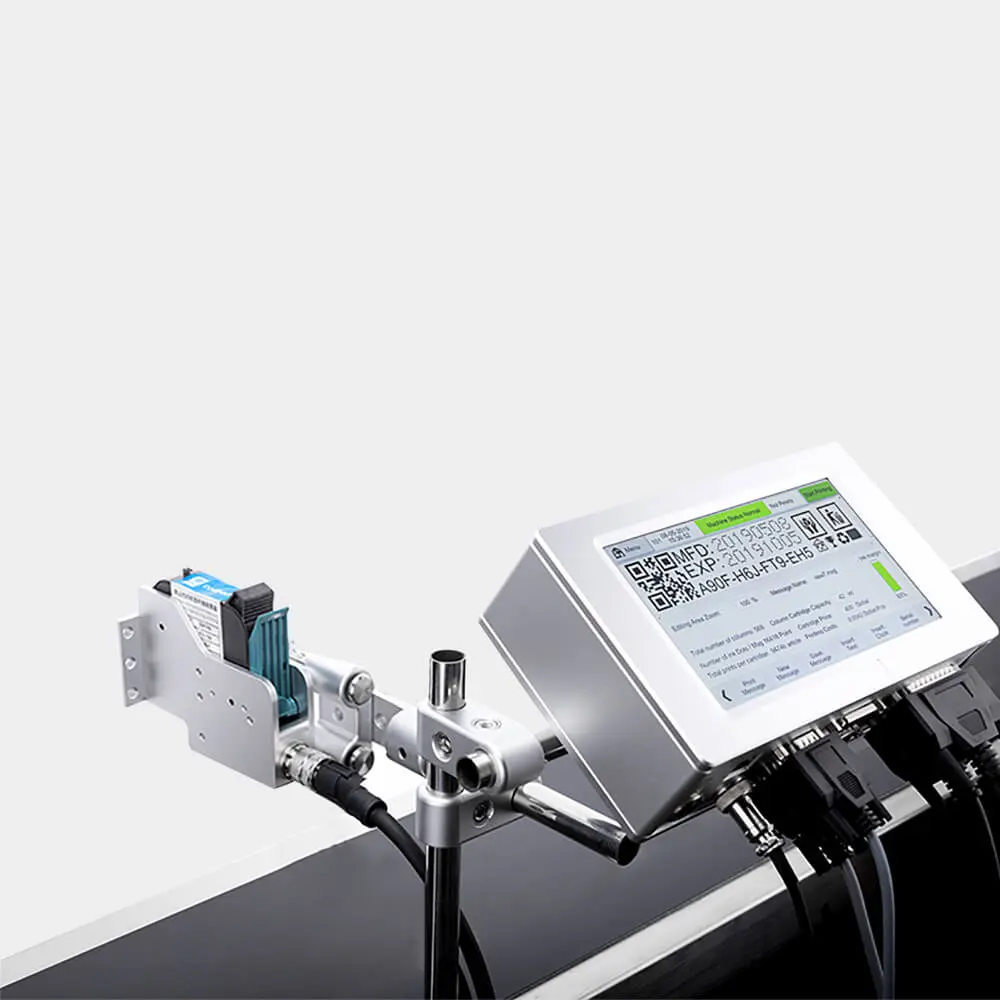

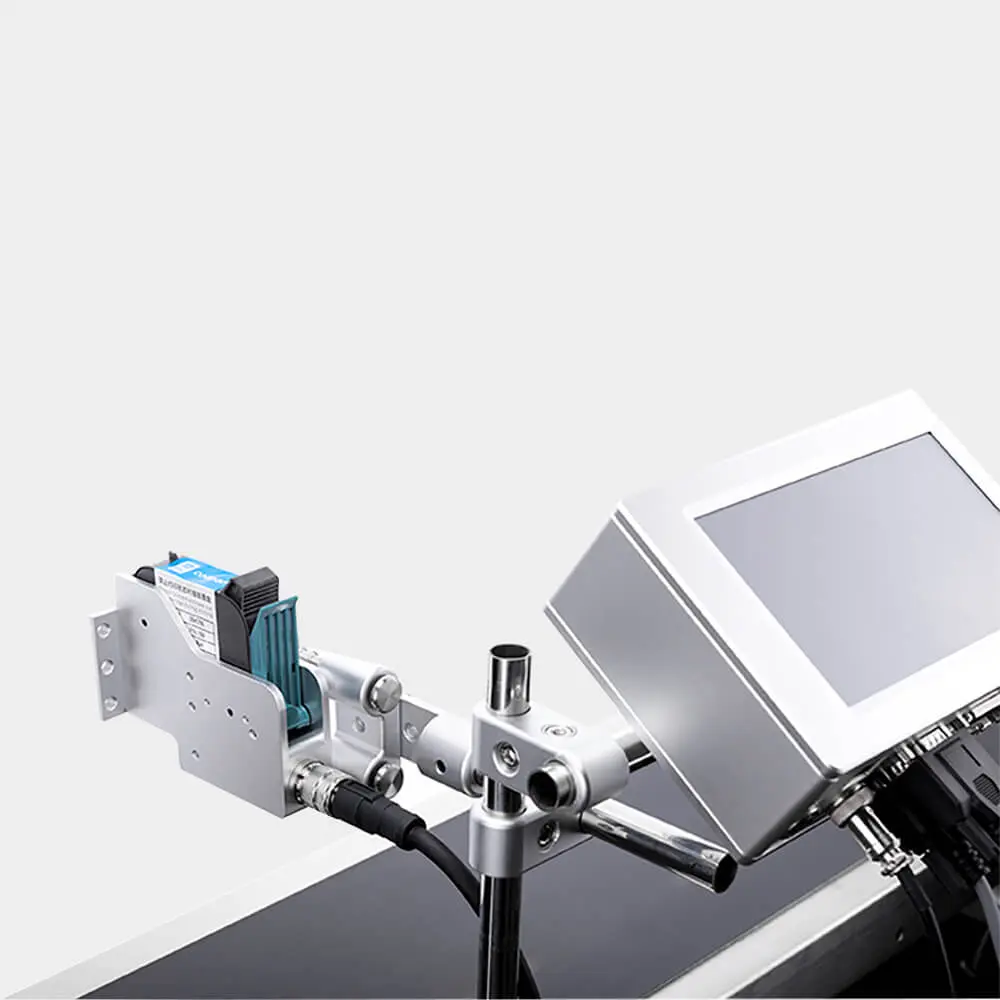

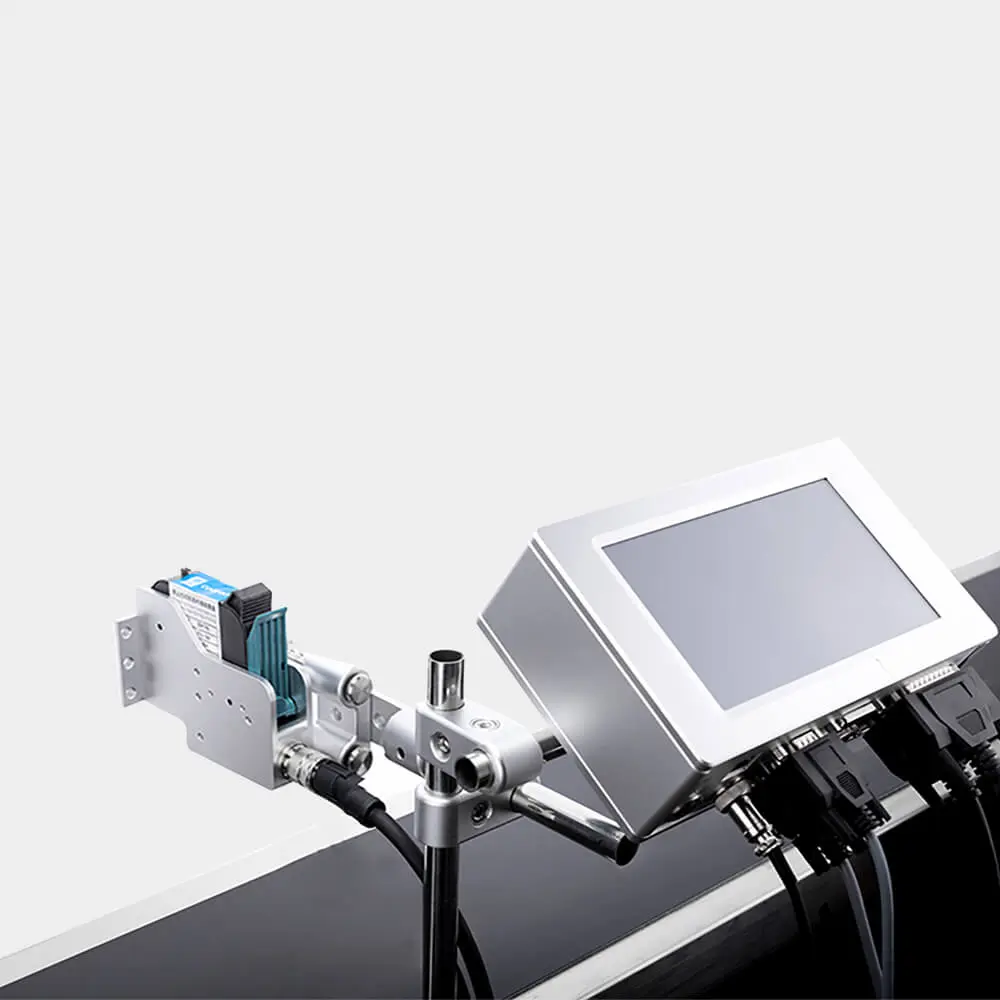

High Speed Intelligent Printing System-PD1


  • Anti-counterfeiting trace data printing
  • Software adjustable, seamless stitching
  • Calculate printing cost in real time
  •  Network remote centralized management

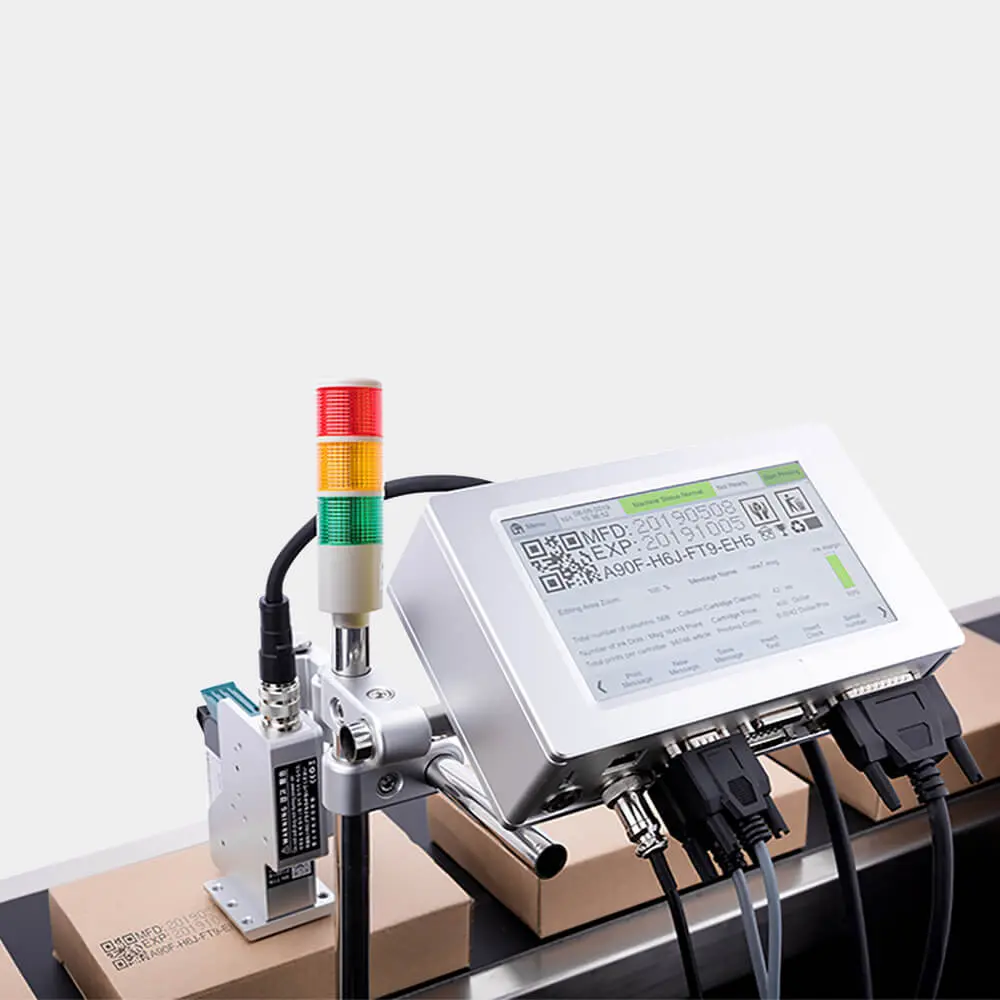

  • Production line alarm light control Wireless keyboard and mouse control
  •  Printing speed up to 406 m / min
  • GS1 DataMatrix

High-Speed Intelligent Printing System-PD1

  • Anti-counterfeiting trace data printing
  • Software adjustable, seamless stitching
  • Calculate printing cost in real time
  •  Network remote centralized management
  • Production line alarm light control Wireless keyboard and mouse control
  •  Printing speed up to 406 m / min
  • GS1 DataMatrix

Product Description


Separate design supports 1 nozzle head splicing assembly

The maximum printing height is upgraded to 12.7mm, with automat





The fine-tuning device makes

the inkjet printing height is more accurate EXP





Say goodbye to online printing content distortion




Support U disk import database printing

The USB flash drive imports the edited TXT text to the machine to complete the database printing

7-inch large high-definition capacitor screen

Industrial-grade protective metal mainframe

1. Industry CPU with FPGA

2. Real-time Linux system

3. Flexible data transfer interface

4. GS1 code printing function

5. Weight &price printing by compatible with multiple weighing protocols

6. Software compensation for nozzle splicing



Parameter

Nozzle type:
TIJ 2.5 thermal foaming nozzle
Printing accuracy:

 Maximum 600*600DPI ( longitudinal:100DPI, 150DPI, 200DPI; transverse:30-600DPI)

Adjustable gray levels 1-6

Printing height:
1-12.7mm
Printing speed:
 406m/min (90DPI), 304m/min(120DPI),240m/min(150DPI), 120m/min (300DPI), 60m/min (600DPI)
Printing content:
Text, time, date, logo, serial number, dynamic barcode/QR code, dynamic serial data, dynamic database
Printing material:

Carton, plastic, metal, sheet, pipe, stone, cable, glass, electronic, components, auto parts,

industrial chemical packaging, medical food gift box

Ink type:
 Food grade, water-based, oily, weak solvent, solvent/42ml
Ink color:
 Black, white, red, yellow, blue, green, invisible, UV
Ink cartridge chip:
RFID non-contact chip, automatic identification of the best ink parameters and record ink margin
Operating system:
 Embedded Linux security operating system
Display screen:
7-inch color display, industrial touchscreen
Communication Interface:
Network interface, USB, RS232
Main hardware:

American TI AM3358 industrial grade CPU, American Xilinx Spant9 industrial grade FPGA,

TIJ dedicated ASIC chip


Online coding effect display

Packing list

1. Packing box                                               2. Host

3. Bracket mounting base                              4. Cross mounting block

5. TIJ-11N light eye                                        6. Nozzle cable

7. Mounting block accessories                       8. Sprinkler head

9. U-Disk and Touchpen                                10. Extended connector(DB15MT/DB9GT/DB15GT)

11. DB9 RS 232 serial cable                          12. Power supply

13. Bracket                                                     14. Vacuum pressurizer

15. Tools                                                         16. Cartridge
