The fine-tuning device makes
the inkjet printing height is more accurate EXP
Say goodbye to online printing content distortion
Support U disk import database printing
The USB flash drive imports the edited TXT text to the machine to complete the database printing
Parameter
| Nozzle type: | TIJ 2.5 thermal foaming nozzle |
| Printing accuracy: | Maximum 600*600DPI ( longitudinal:100DPI, 150DPI, 200DPI; transverse:30-600DPI) Adjustable gray levels 1-6 |
| Printing height: | 1-12.7mm |
| Printing speed: | 406m/min (90DPI), 304m/min(120DPI), 240m/min(150DPI),120m/min (300DPI), 60m/min (600DPI) |
| Printing content: | Text, time, date, logo, serial number, dynamic barcode/QR code, dynamic serial data, dynamic database |
| Printing material: | Carton, plastic, metal, sheet, pipe, stone, cable, glass, electronic, components, auto parts, industrial chemical packaging, medical food gift box |
| Ink type: | Food grade, water-based,oily,weak solvent,solvent/42ml |
| Ink color: | Black, white, red, yellow, blue, green, invisible, UV |
| Ink cartridge chip: | RFID non-contact chip, automatic identification of the best ink parameters and record ink margin |
| Operating system: | Embedded Linux security operating system |

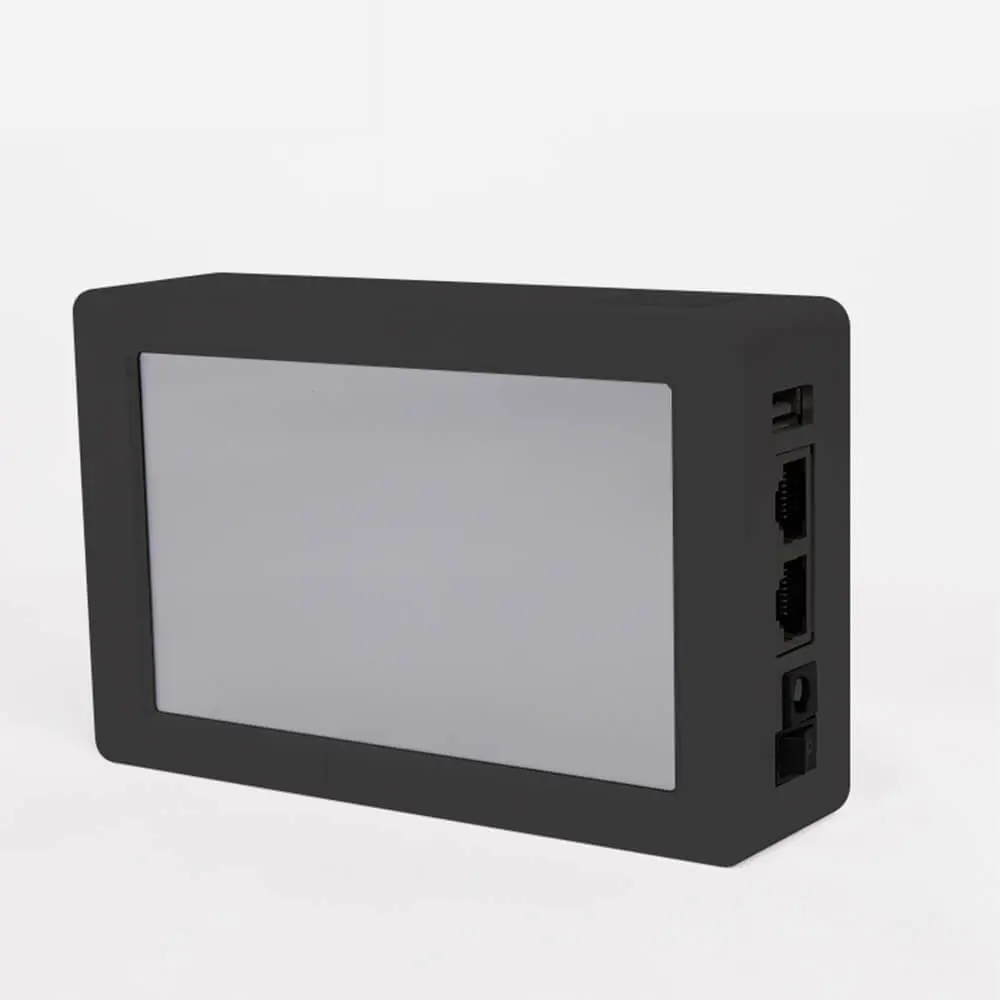

| Display screen: | 5-inch color display, industrial touch screen |
| Main hardware: | American TI AM3358 industrial grade CPU, American Xilinx Spant9 industrial grade FPGA, TIJ dedicated ASIC chip |
| Communication Interface: | Network interface, USB, RS232 |
| Power adapter: | 100-240V AC input, 30V/4A DC output |
| Machine material: | Aviation grade aluminum |

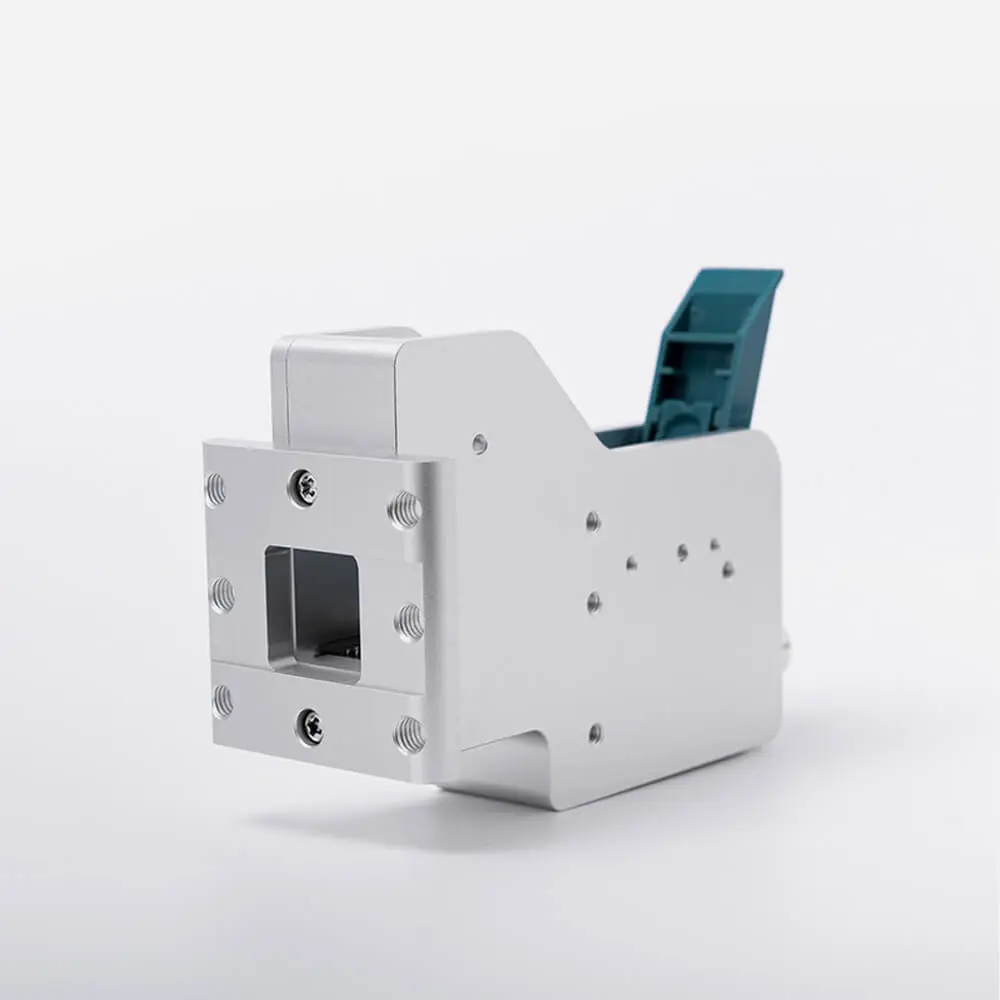

| Machine specifications: | Controller:202mm*119mm*61.2mm; Printhead group:112mm*79mm*103mm |
Packing list
1. Packing box 2. Host
3. Bracket mounting base 4. Cross mounting block
5. TIJ-11N light eye 6. Nozzle cable
7. Mounting block accessories 8. Sprinkler head
9. U-Disk and Touchpen 10. Extended connector(DB15MT/DB9GT/DB15GT)
11. DB9 RS 232 serial cable 12. Power supply
13. Bracket 14. Vacuum pressurizer
15. Tools 16. Cartridge
