- Compatible design, maintenance friendly
Automatic ink stream on when start-up and ink stream suck back when turn off
- Nozzle size: 58 um standard, 52 to 65 μm optional
- Easily accessible and can be installed in any position
- Distance from the print head to print surface 1mm-30mm
Product Application:
All in one mainboard
New generation control system

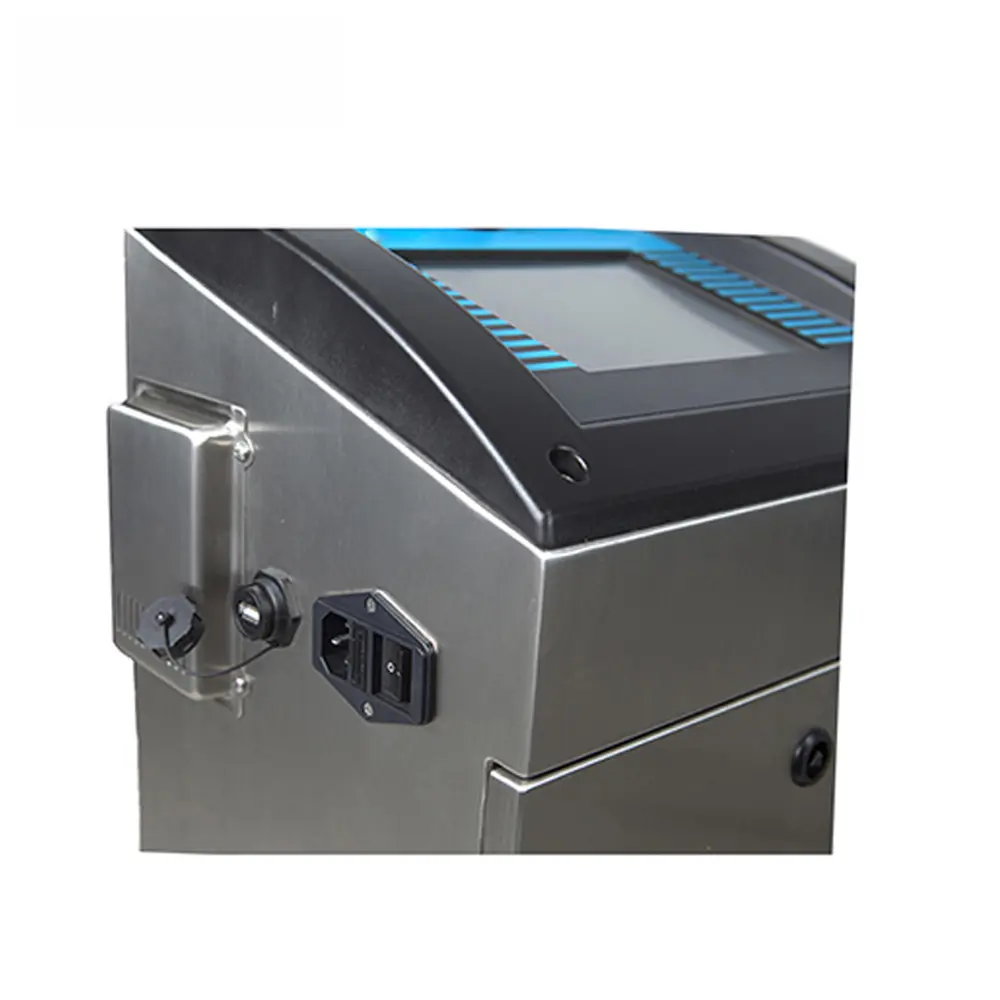

Sufficient external interfaces
A variety of optional external ports, including serial ports.network ports, USB ports, expandable input, and output 10 ports can be used to connect computers, industrial controllers, PLCs, code scanners, and weighing instruments for equipment interconnection, information exchange, and mutual control
More stable printhead
The optimized and upgraded printheads integrate modules such as heating. phase detection, amplification, positive air pressure output and high voltage insulation. More over the printhead valves are adapted to pigment ink
Modular design
Modular design makes the system clean and simple integrating all the stability and enabling quick maintenance
Specification
| Print Lines | Within 3 Lines (5*5 dot) |
| Dot Matrix | 24* 24 dot matrix |
| Memory | 1000 messages, 1000 graphics |
| Print Speed | 1,500 characters per second (5 x 7 dots) |
| Printer Content | Time, Date, Lot No, Serial No. etc. |
| Operating Interface | Chinese, English, Korean and others with the graphic editing function |
| Print Objects | English character, Arabic number, date, time, batch numbers and logo, trademark, text |
| Material | metal, plastic, glass, wood, tubing, electrical wire, cable, etc |
| Ink Consumption | 70 million character per liter |
| Nozzle Connection Tube | 3M |
| Ink Color | black, blue, red, etc |
| Consumption of Ink | 70 million characters per liter |
| Operating Environment | 5-45 degree centigrade, below 90% (humidity) |
| Power Source | AC220V/380V 50HZ 100AV |
Feature
Quick-dry black ink used industrial non-contact small character inkjet printers Print consistently high-quality images even on structured and uneven surfaces
Print features include TEXT, DATE, TIME, BATCH NUMBER, LOGO, AND TRADEMARK
Easy to be integrated at any position of the production line User-friendly interface and most reliable ink system

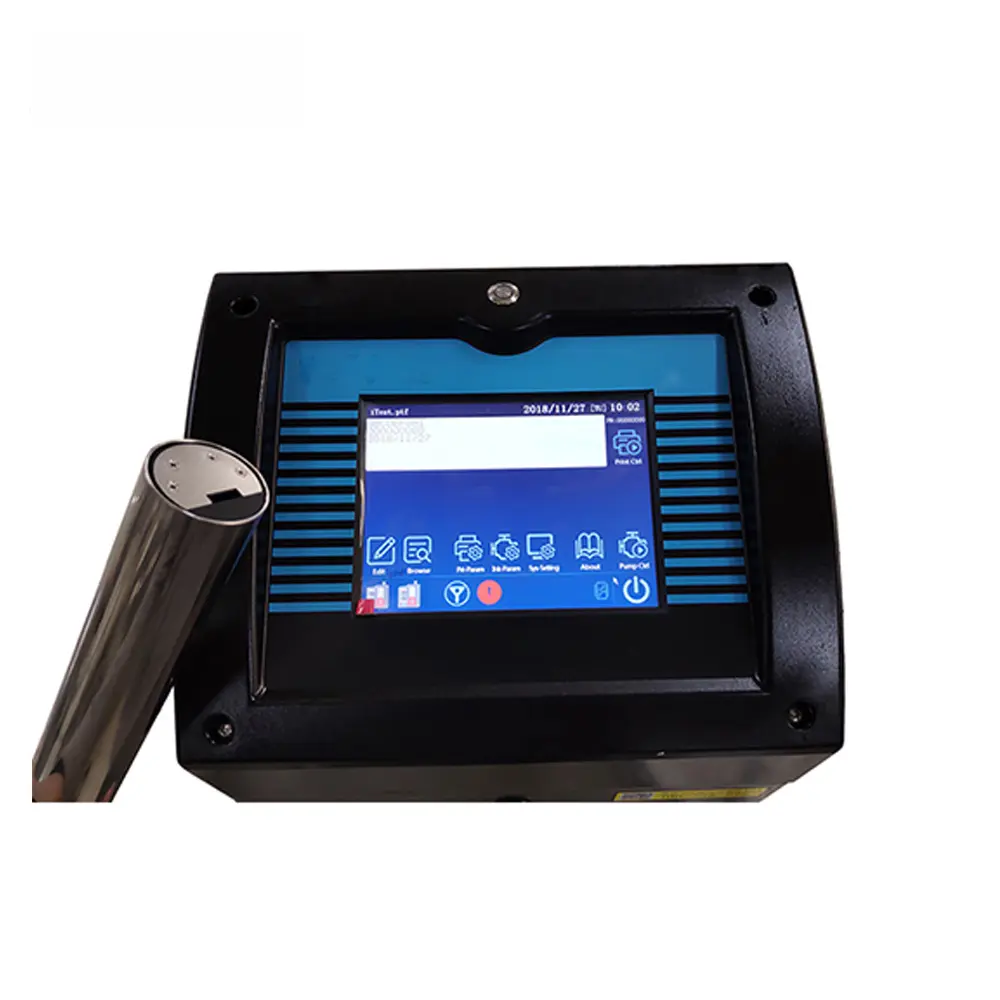

32-bit embedded CPU, large memory, and the 8.4" TFT bright clear touch screen Multitask system, printing, and editing at the same time

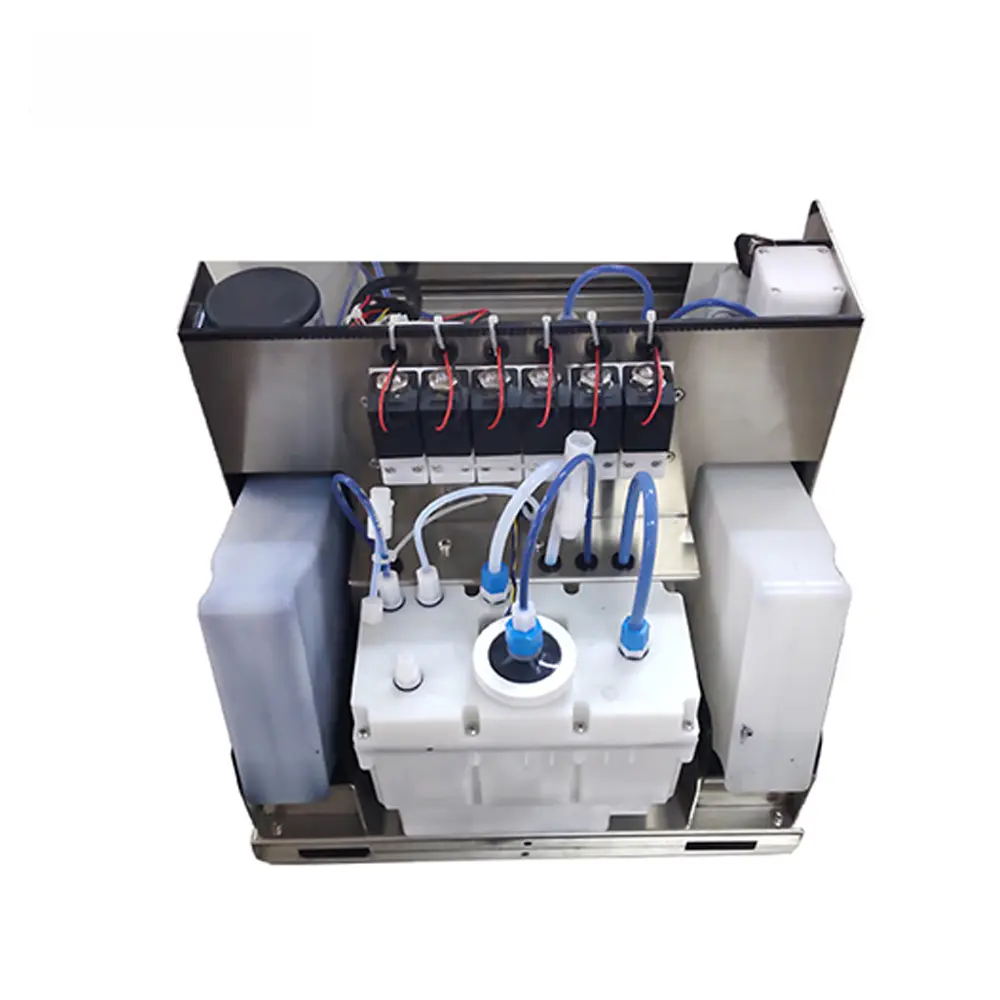

Hydraulic system
Full automatic viscosity control and pressure control
Diaphragm pumps with reliable, have longer life, low maintenance cost than a gear pump Electronic control systems completely separate design from the hydraulic system
Print Head
- Compatible design, maintenance friendly
Automatic ink stream on when start-up and ink stream suck back when turn off
- Nozzle size: 58 um standard, 52 to 65 μm optional
- Easily accessible and can be installed in any position
- Distance from the print head to print surface 1mm-30mm
Product Size:
