8-inch full-color high-definition touch screen
Full-touch virtual keyboard
Embedded ink system, less ink leak
High print speed: 280m/min (5*7 dots)
Autonomous solenoid control
Two-way cleaning; run smoother
New design print head/ 62U Ruby nozzle
Support USB and RS232 port

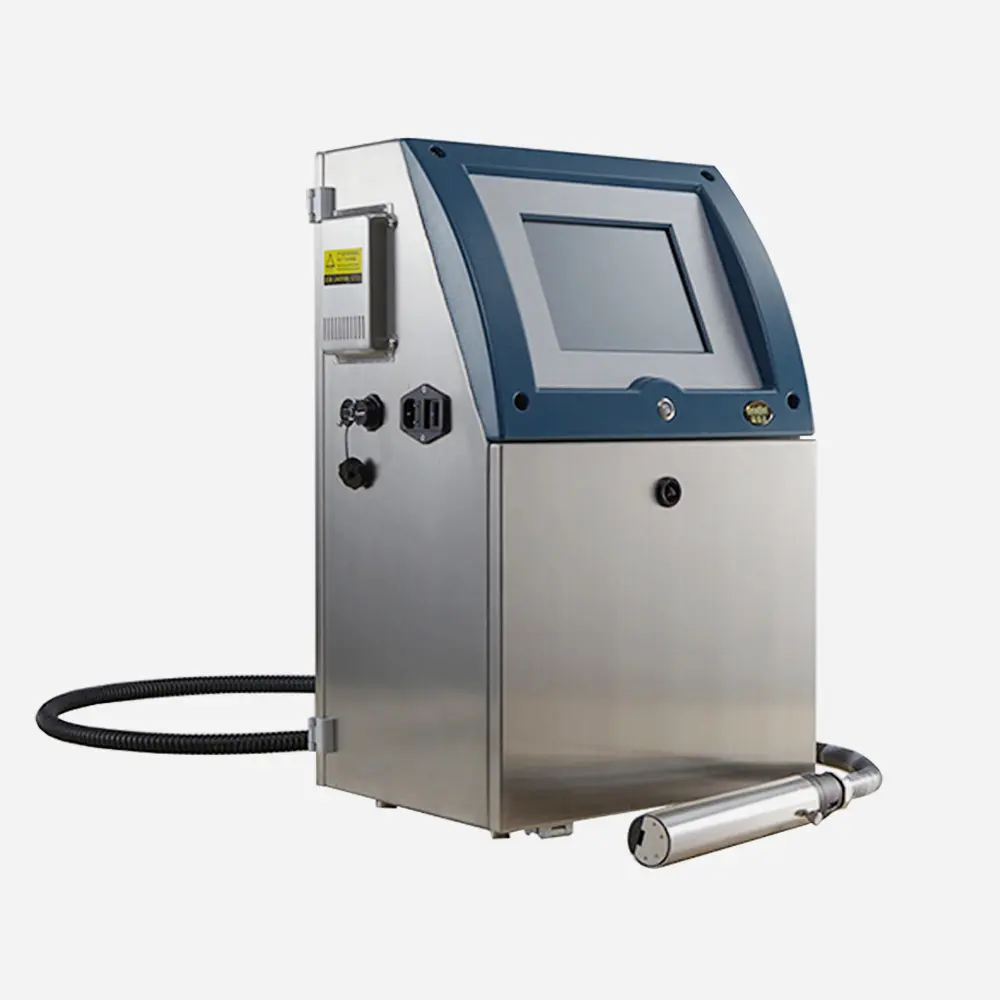

P280 Plus Continuous Inkjet Printer
Product Application:
All in one mainboard
New generation control system
Sufficient external interfaces
A variety of optional external ports, including serial ports.network ports, USB ports, expandable input, and output 10 ports can be used to connect computers, industrial controllers, PLCs, code scanners, and weighing instruments for equipment interconnection, information exchange, and mutual control

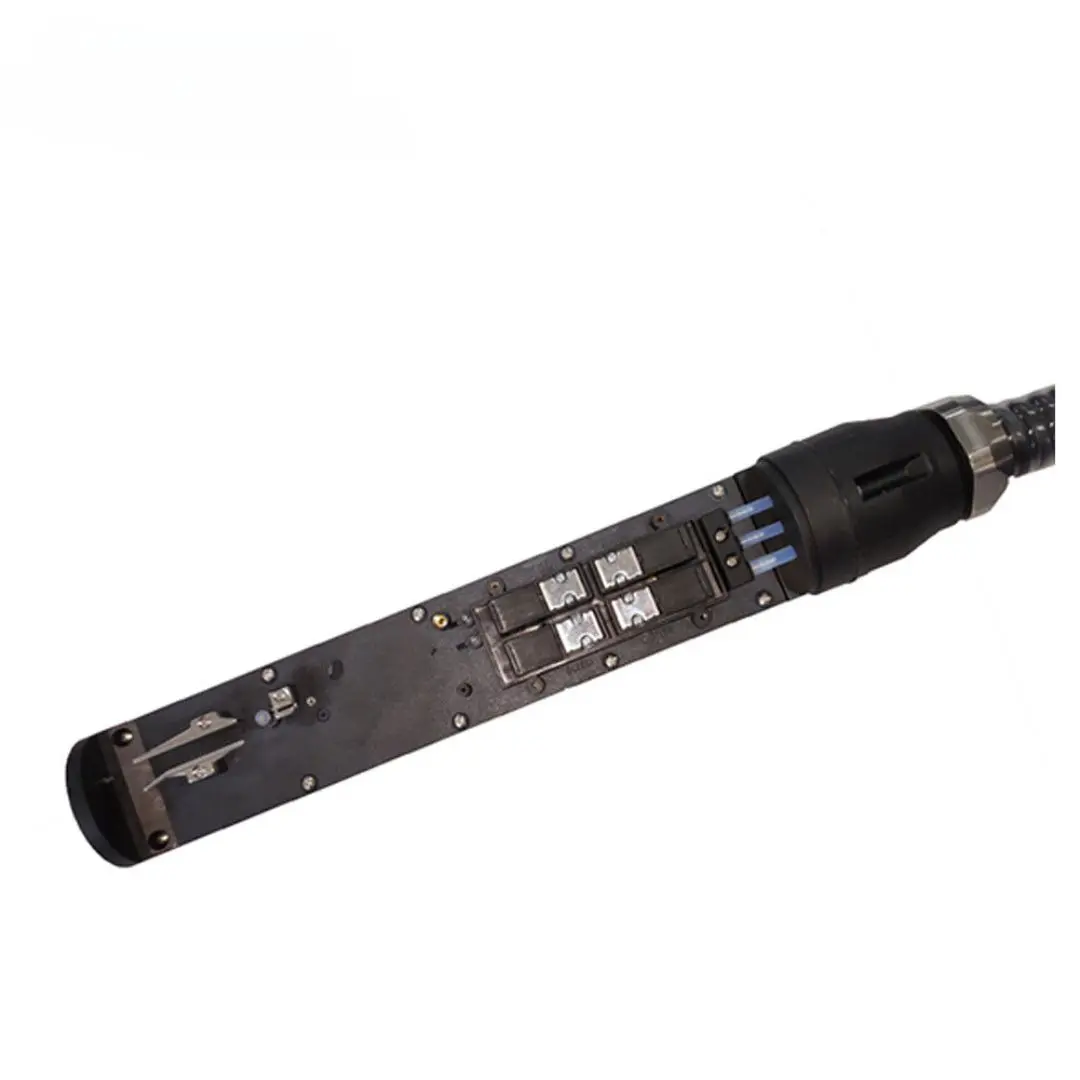

More stable printhead
The optimized and upgraded printheads integrate modules such as heating. phase detection, amplification, positive air pressure output and high voltage insulation. More over the printhead valves are adapted to pigment ink
Modular design
Modular design makes the system clean and simple integrating all the stability and enabling quick maintenance
| Print Lines | Within 4 Lines (5*7 dot) or 5 Lines(5*5 dot) |
| Dot Matrix | 32 32 dot matrix |
| Memory | 1000 messages, 1000 graphics |
| Print Speed | 300m/min(5*7 dots) |
| Print distance | 30mm Max. from the printhead bottom to the substrate surface |
| Operating Interface | Chinese, English |
| Print Objects | English character, Arabic number, date, time, batch numbers and logo, trademark, text |
| Material | metal, plastic, glass, wood, tubing, electrical wire, cable, etc |
| Font Width | up to 9 times |
| Printhead Throat Length | 3m (customizable) |
| Ink Color | black, blue, red, etc |
| Consumption of Ink | 49 million characters per liter |
| Operating Environment | 5-45 degree centigrade, below 90% (humidity) |
| Power Source | AC220V/380V 50HZ 100AV |
Product Size:
Our Application:
