- Compatible design, maintenance friendly - Automatic ink stream on when start-up and ink stream suck back when turn off.
- Nozzle size: 58 um standard, 52 to 65 μm optional - Easily accessible and can be installed in any position.
- Distance from the print head to print surface 1mm-30mm.

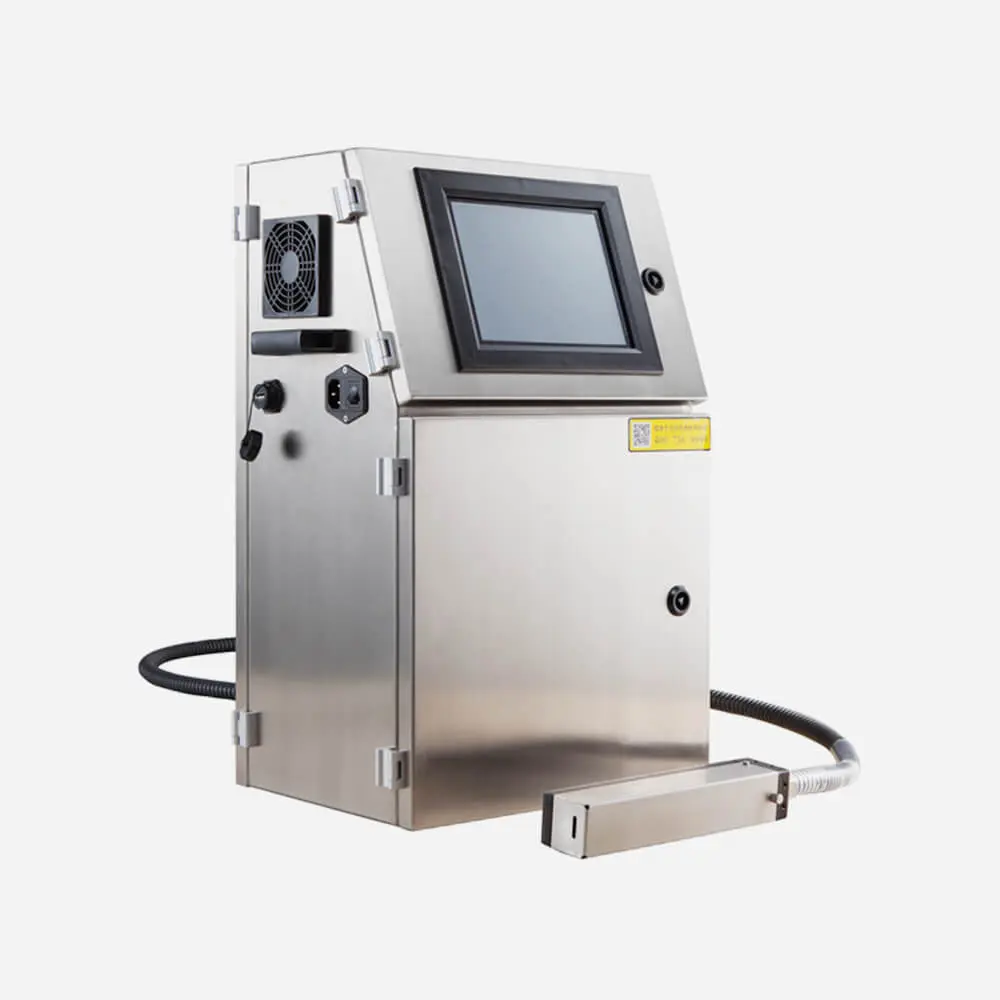

P98 Continuous Inkjet Printer
Product Application:
Product Details:
All in one mainboard
New generation control system
Sufficient external interfaces
A variety of optional external ports, including serial ports.network ports, USB ports, expandable input, and output 10 ports can be used to connect computers, industrial controllers, PLCs, code scanners, and weighing instruments for equipment interconnection, information exchange, and mutual control
More stable printhead
The optimized and upgraded printheads integrate modules such as heating. phase detection, amplification, positive air pressure output and high voltage insulation. More over the printhead valves are adapted to pigment ink
Modular design
Modular design makes the system clean and simple integrating all the stability and enabling quick maintenance
Specification
| Print Lines | 1-4 lines (4 x 4 dots) |
| Dot Matrix | figure and letter 5 x 5,5 x 7, 8 x 10, 8 x 12, 12 x 16, 16 x 16,24 x 24,and user-defined in 32 x 32 |
| Memory | 1000 messages, 1000 graphics |
| Print Speed | 1,000 characters per second (5 x 7 dots) |
| Letter Height | 1-20mm |
| Operating Interface | Chinese, English |
| Print Objects | English character, Arabic number, date, time, batch numbers and logo, trademark, text |
| Material | metal, plastic, glass, wood, tubing, electrical wire, cable, etc |
| Font Width | up to 9 times |
| Nozzle Connection Tube | 3M |
| Ink Color | black, blue, red, etc |
| Consumption of Ink | 70 million characters per liter |
| Operating Environment | 5-45 degree centigrade, below 90% (humidity) |
| Power Source | AC220V/380V 50HZ 100AV |
Feature
The quick-dry black ink used industrial non-contact small character inkjet printers.
Print consistently high-quality images even on structured and uneven surfaces.
Print features include TEXT, DATE, TIME, BATCH NUMBER, LOGO, AND TRADEMARK.
Easy to be integrated at any position of the production line User-friendly interface and most reliable ink system.
32-bit embedded CPU, large memory, and the 8.4" TFT bright clear touch screen Multitask system, printing and editing at the same time.

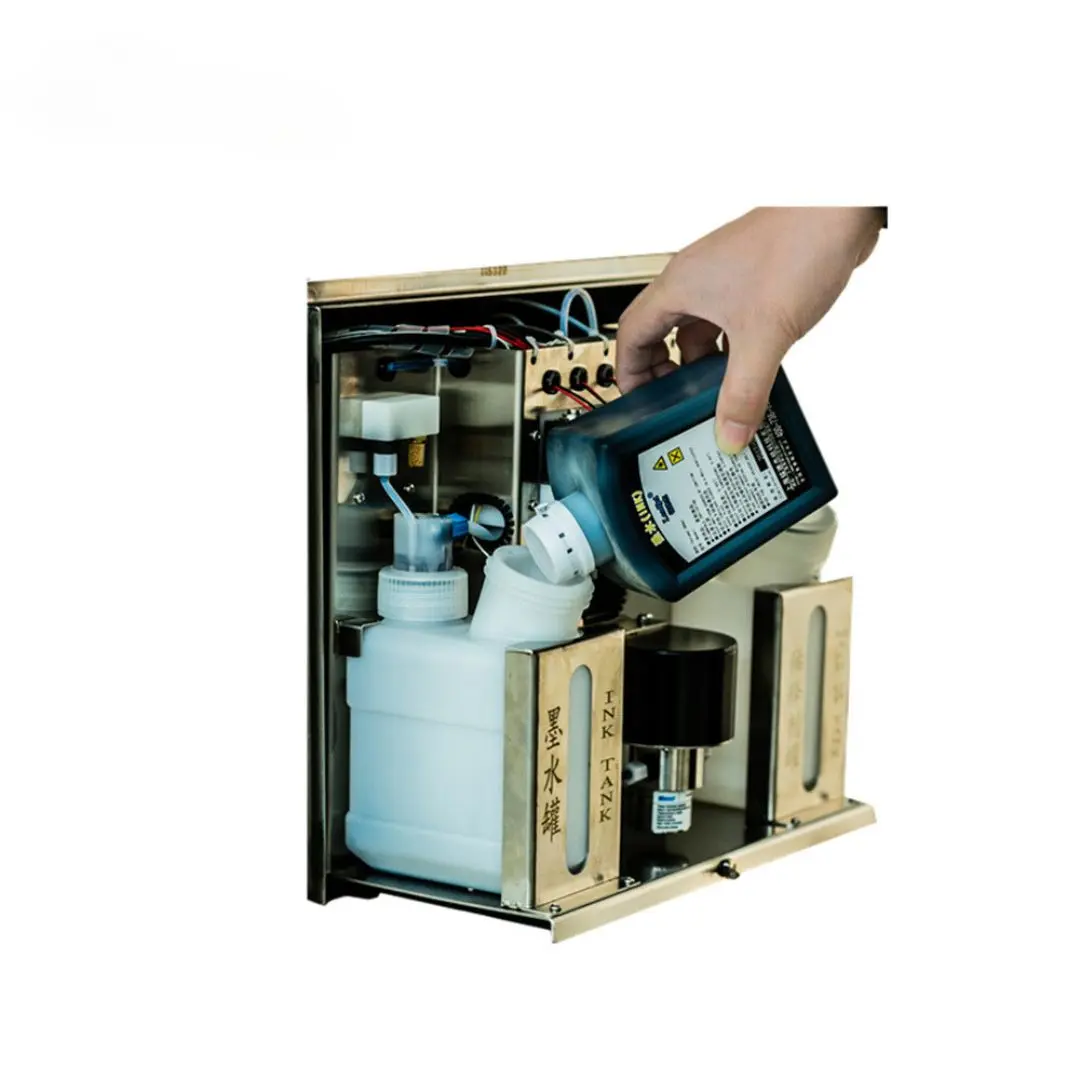

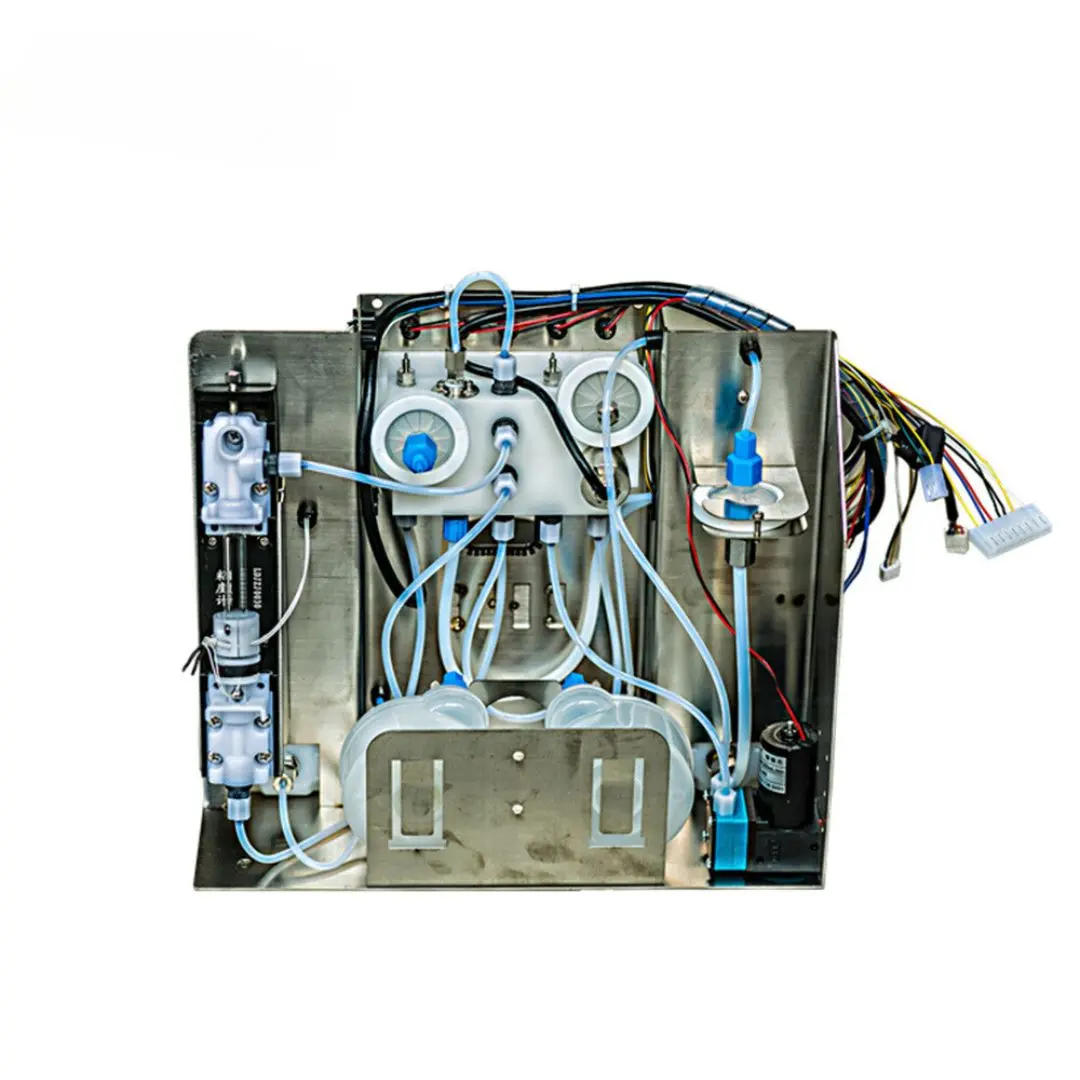

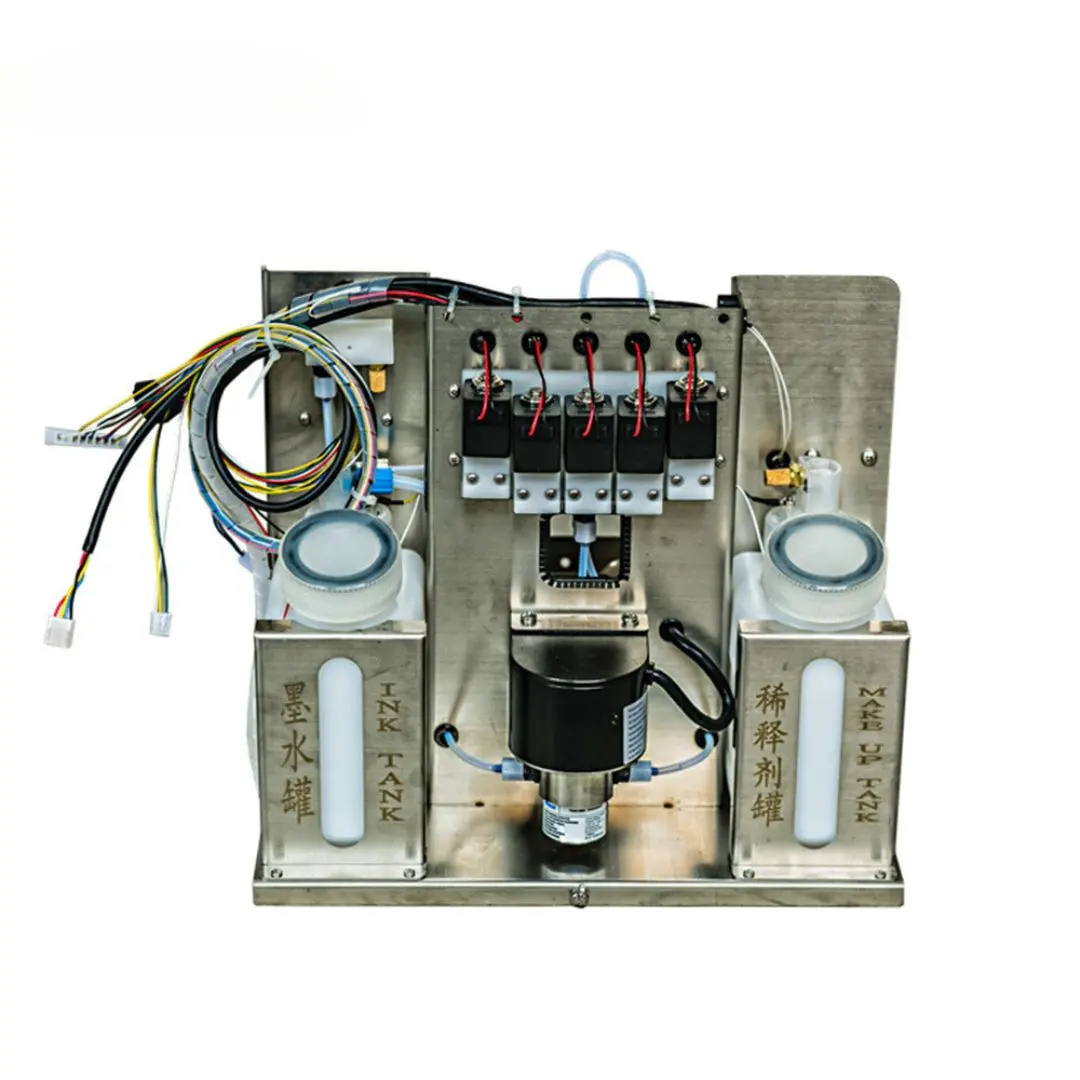

Hydraulic system
Full automatic viscosity control and pressure control.
Diaphragm pumps with reliable, have a longer life, low maintenance cost than a gear pump Electronic control systems are completely separate design from the hydraulic system.
Print Head
- Compatible design, maintenance friendly - Automatic ink stream on when start-up and ink stream suck back when turn off.
- Nozzle size: 58 um standard, 52 to 65 μm optional - Easily accessible and can be installed in any position.
- Distance from the print head to print surface 1mm-30mm.
Product Size:
Our Application:
